Checkpoint ALR 4 is an aluminium gravel bike that offers an incredible amount of capability for the price.
Checkpoint ALR 4 is an aluminium gravel bike that offers an incredible amount of capability for the price.
Trek

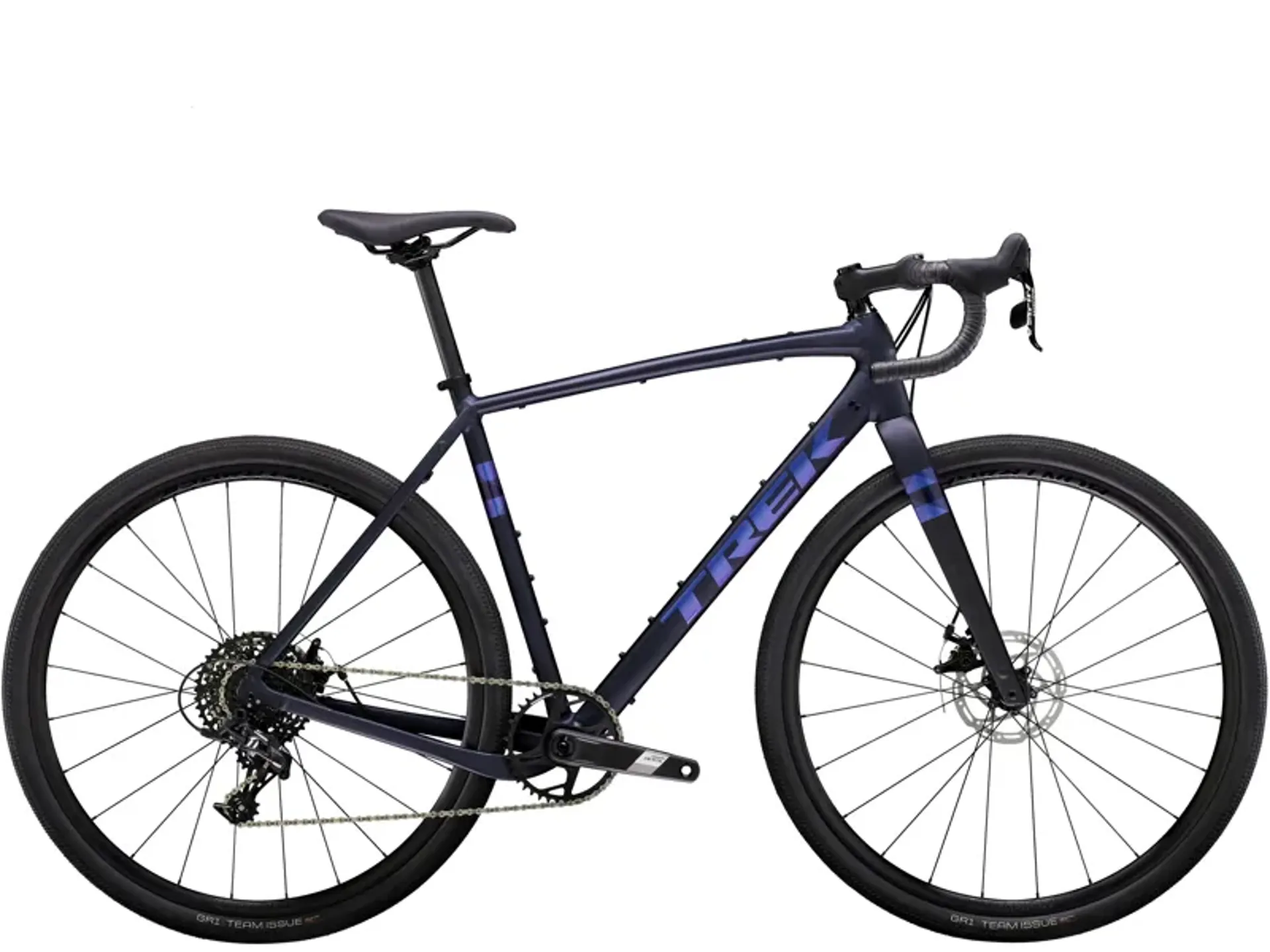

Trek Checkpoint ALR 4 Aluminium Gravel Bike in Deep Dark Blue

€1,399.00 €1,549.00 10% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Fuss-free Returns

Obviously we want you to be happy with every product you purchase from us, whether online or in store. Please do not remove labels from products or dispose of packaging while you are making up your mind as this may affect your ability to return an item. If you choose to return an item it must reach us in original unused condition with all labels attached and any packaging that may have formed part of the item i.e. boxed goods. At all times your statutory rights are protected.

MAKING A RETURN

In the event that you are not satisfied or have changed your mind, you may return any item or items within 14 days of the dispatch date and, following inspection of the product, we will refund you for the cost of the item minus the outgoing delivery charge (minimum charge €5.99) via the original payment method used. Please note that the cost of return is not the responsibility of Altitude. We reserve the right not to accept ‘change of mind’ returns outside of this period. Goods may also be returned in person to our store.

Returns should be posted to: Online Returns, Altitude, 22 Ballybricken, Waterford City, Ireland. X91 V6VA

CANCELLATION POLICY

You can cancel or amend any order (or part of an order) placed with us, provided that the order has not yet entered the dispatch process. You will receive a full refund, including postage, via the original method of payment.

If your order, or part of it, has entered the dispatch process, you can refuse to accept the delivery of the item. It will be returned to us as undeliverable where we will refund the amount for the item however, you will still incur costs for the outward postage.

Trek Checkpoint ALR 4 Aluminium Gravel Bike in Deep Dark Blue

Season:2024

Brand:Trek

Code:41513BLU

Checkpoint ALR 4 is an aluminium gravel bike that offers an incredible amount of capability for the price.

It's built for the rigours of gravel and dirt roads, but it's also right at home on morning commutes and centuries. This bike knows no boundaries, which makes it the ideal gateway to adventure on any road or path.


Technical Information
  • Frame
    300 Series Alpha Aluminum, tapered head tube, internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
  • Fork
    Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
  • Weight
    56 - 9.91 kg / 21.85 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg)
  • Shifter
    SRAM Apex, 11 speed
  • Rear derailleur
    SRAM Apex 1, long cage, 42T max cog
  • Crank
    Size 49: SRAM Apex 1, 40T, DUB Wide, 165mm length; Size 52: SRAM Apex 1, 40T, DUB Wide, 170mm length; Size 54, 56: SRAM Apex 1, 40T, DUB Wide, 172.5mm length; Size 58, 61: SRAM Apex 1, 40T, DUB Wide, 175mm length
  • Bottom bracket
    SRAM DUB Wide, T47 threaded, internal bearing
  • Cassette
    SRAM PG-1130, 11-42, 11 speed
  • Chain
    SRAM PC-1130, 11 speed
  • Max chainring size
    1x: 44T (SRAM), 50T (Shimano), 2x: 50/34
  • Hub front
    Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
  • Skewer front
    Bontrager Switch thru axle
  • Hub rear
    Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
  • Skewer rear
    Bontrager Switch thru axle, removable lever
  • Rim
    Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
  • Spokes
    14g stainless steel, black
  • Tire
    Size 49, 52, 54, 56, 58, 61: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm; Size 49, 52, 54, 56, 58, 61: Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
  • Tire part
    Bontrager TLR sealant, 6oz
  • Rim strip
    Bontrager TLR
  • Max tire size
    See service manual
  • Saddle
    Size 49, 52: Bontrager Verse Comp, steel rails, 155mm width; Size 54, 56, 58, 61: Bontrager Verse Comp, steel rails, 145mm width
  • Seatpost
    Bontrager alloy, 27.2mm, 12mm offset, 330mm length
  • Handlebar
    Size 49: Bontrager Elite Gravel, 38cm width; Size 52: Bontrager Elite Gravel, 40cm width; Size 54, 56: Bontrager Elite Gravel, 42cm width; Size 58, 61: Bontrager Elite Gravel, 44cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
    Size 49: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size 52, 54: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size 56, 58: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size 61: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
  • Brake
    Tektro C550 mechanical disc brake, dual piston, flat mount
  • Brake rotor
    Tektro, centerlock, 160mm
  • Max brake rotor sizes
    160mm front & rear
