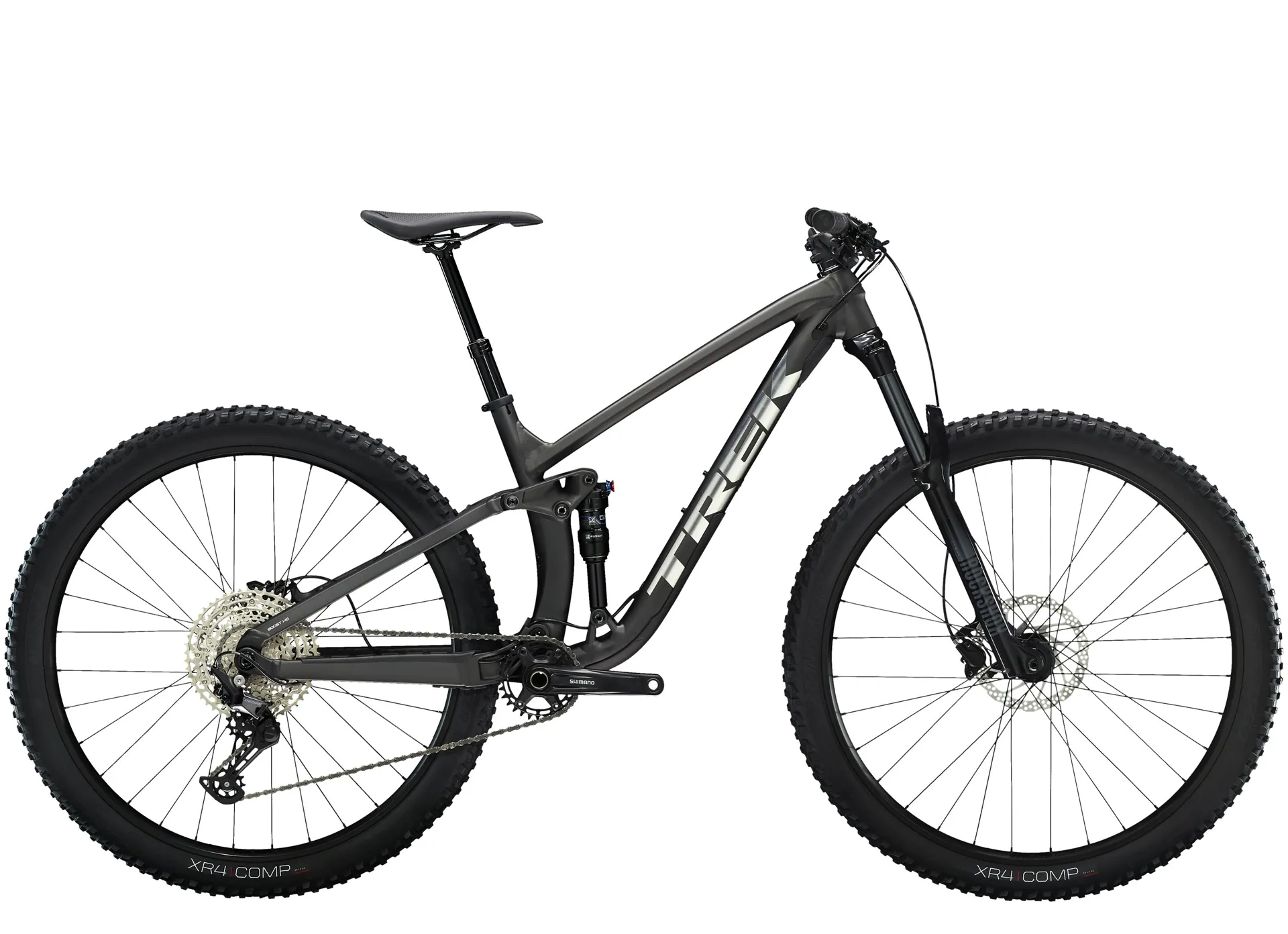

Trek Fuel EX 5 Mountain Bike in Black

Season:2023

Brand:Trek

Code:33073MATBLK

The Fuel EX 5 is a full-suspension trail bike that's ready to handle it all.

With trail-taming 140 mm front and 130 mm rear suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.
Technical Information
  • Frame
    Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
  • Fork
  • Size: XS , S
    RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 140 mm travel
  • Size: S , M , ML , L , XL , XXL
    RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 140 mm travel
  • Shock
  • Size: XS , S
    X-Fusion Pro 2, 2-position damper, 210 mm x 52.5 mm
  • Size: S , M , ML , L , XL , XXL
    X-Fusion Pro 2, 2-position damper, 210 mm x 55 mm
  • Max compatible fork travel
    150mm (561mm axle-to-crown)
  • Hub front
    Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle
  • Hub rear
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
  • Tyre
  • Size: XS , S
    Bontrager XR4 Comp, wire bead, 30 tpi, 27.5x2.60"
  • Size: S , M , ML , L , XL , XXL
    Maxxis Rekon EXO, wire bead, 60 tpi, 29x2.60''
  • Size: S , M , ML , L , XL , XXL
    Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.60" Fork: See manufacturer
  • Drivetrain
    Shifter
  • Rear derailleur
    Shimano Deore M6100, long cage
  • Crank
  • Size: XS , S , M , ML , L
    Shimano MT511, 30T steel ring, 52 mm chainline, 170 mm length
  • Size: M , ML , L , XL , XXL
  • Shimano MT511, 30T steel ring, 52 mm chainline, 175 mm length
  • Bottom bracket
    Shimano MT500, 92 mm, PressFit
  • Cassette
    Shimano Deore M6100, 10-51, 12-speed
  • Chain
    Shimano Deore M6100, 12-speed
  • Max. chainring size
    34T
  • Saddle
    Bontrager Arvada, steel rails, 138 mm width
  • Seatpost
  • Size: XS , S
    TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
  • Size: M , ML , L , XL , XXL
    TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
  • Handlebar
    Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
  • Grips
    Bontrager XR Trail Comp, nylon lock-on
  • Stem
    Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
  • Head set
    Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
  • Brake
    Shimano hydraulic disc, MT201 lever, MT200 calliper
  • Brake rotor
    Shimano RT56, 6-bolt, 180 mm
